Product Specifications
| Specifications and models(m) | ⌀2.2×3 | ⌀2.4×2.45 | ⌀2.4×4.5 | ⌀2.8×6 | ⌀3.2×7.5 | ⌀3.6×8.2 |
| Outer cylinder diameter(m) | 2.2 | 2.4 | 2.4 | 2.8 | 3.2 | 3.6 |
| Outer cylinder length(m) | 3 | 2.5 | 4.5 | 6 | 7.5 | 8.2 |
| Cylinder volume(m³) | 5.08 | 9.5 | 31.89 | 40.5 | 56.26 | 81.38 |
| Cylinder rotational speed(rpm) | 6-12 | 6-12 | 6-12 | 6-12 | 6-12 | 6-12 |
| Material stay time(min) | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Initial moisture content of materials(%) | 6-15 | 6-15 | 6-15 | 6-15 | 6-15 | 6-15 |
| Final moisture content of material(%) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Intake temperature(℃) | 450-800℃ | 450-800℃ | 450-800℃ | 450-800℃ | 450-800℃ | 450-800℃ |
| Production capacity(T slag) | 3-5 | 5-8 | 20-25 | 30-35 | 40-45 | 50-65 |
| Production capacity(T yellow sand) | 8-10 | 10-15 | 25-30 | 35-40 | 45-50 | 65-80 |
| Motor power(kw) | 5.5 | 4*2 | 4*4 | 7.5*4 | 11*4 | 15*4 |
| Gear reducer model | MJ79 | MJA89 | MJA89 | MJA99 | MJA99 | ZLY250 |

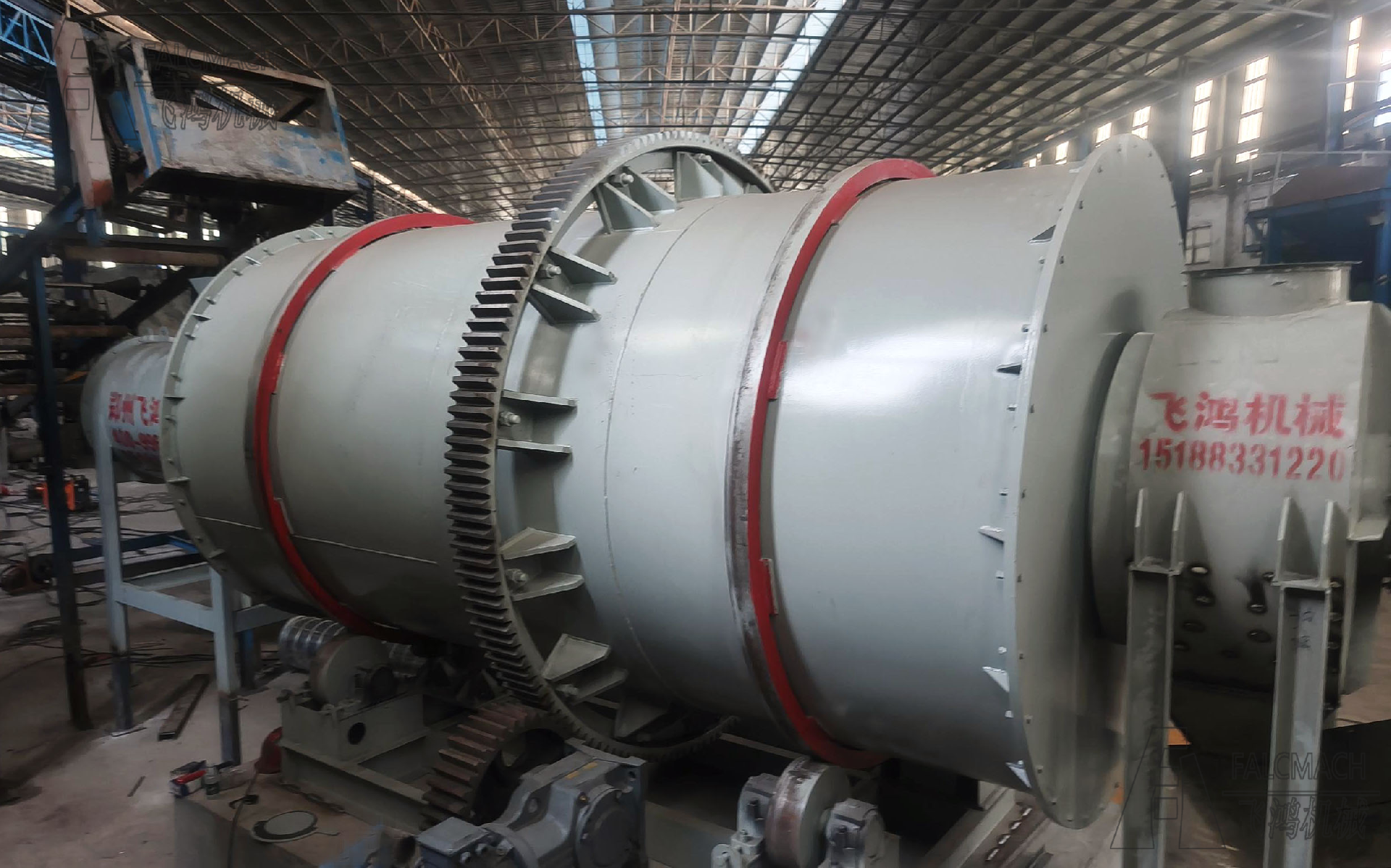

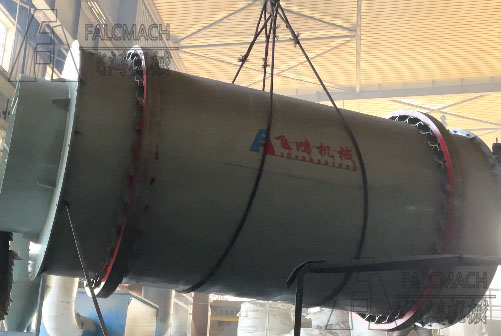

Real on-site video

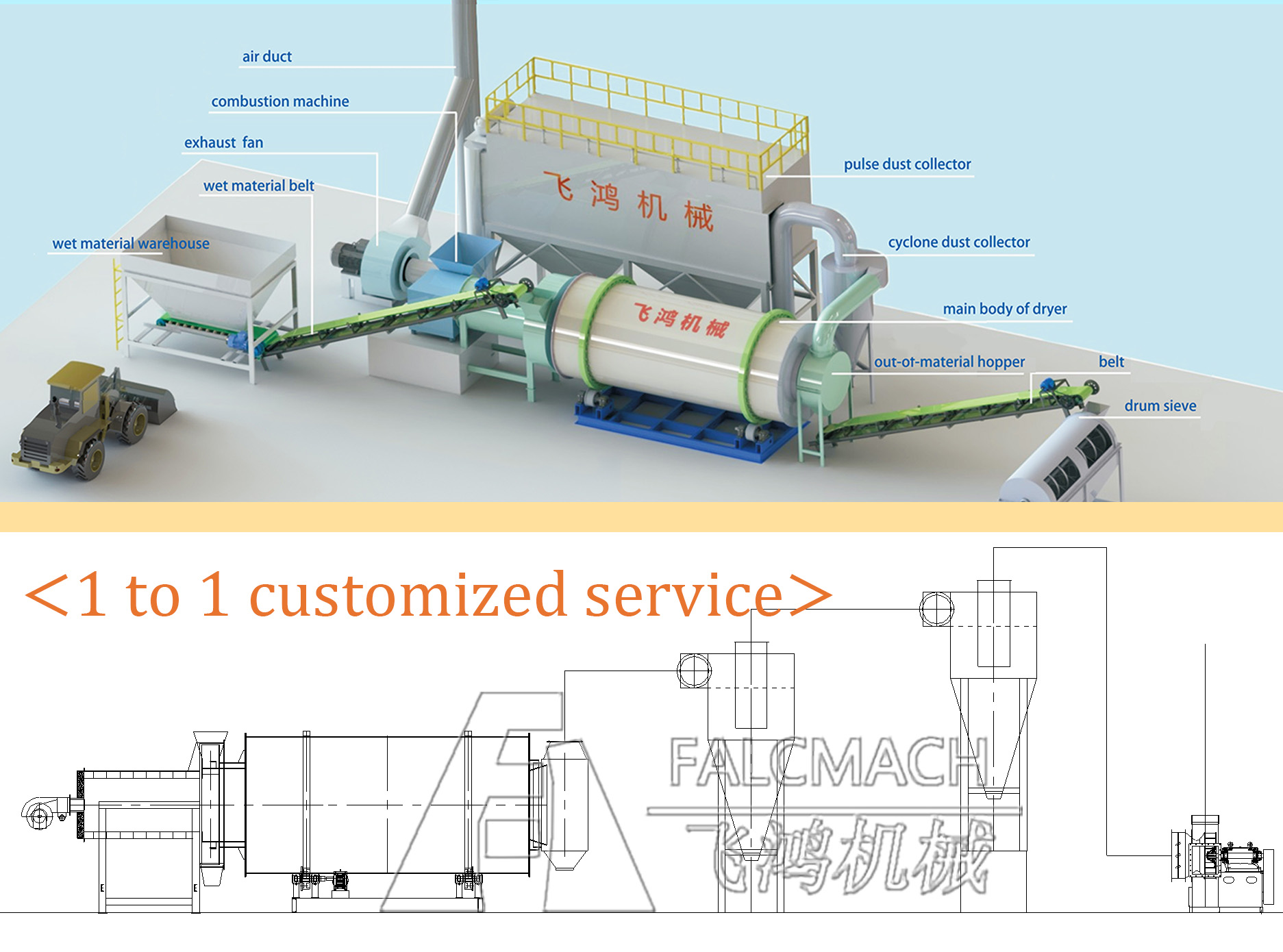

Introduction to 3D Models
